CRH Economic Class Seat High Speed Train Ergonomic Adjustable Backrest Seat

Brief introduction:

This 2-person ergonomic seat is designed for CRH economic class carriage. The seat's backrest could be adjust to passenger's requirements. The seat could rotate 180 ° to meet train's drive reverse direction. The back of the seat is equipped with a foldable tray table, a magazine net pocket and power socket.

Main technical parameters:

Structure description:

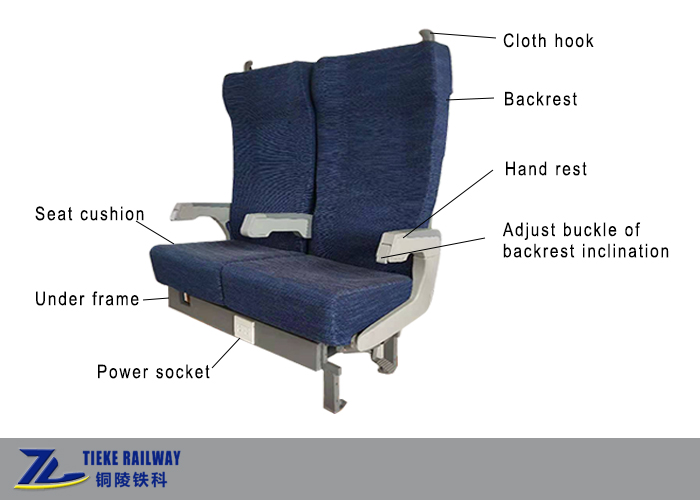

The main seat structure consists of a backrest and headrest, a seat cushion, a chair leg, side and center armrests, and a footrest-mounted slide rail. In addition, a fiberglass underlay has been added to the underside of the seat cushion for a decorative effect. The outer parts of the legs and chair legs are made of PVC and ABS respectively. The back plate of the cushion is made of ABS material, and there is an interface to install the
tea table and trash can.

The seat is equipped with a combined slider on the footrest, an upper slider on the underside of the movable seat cushion and a non-slip buckle also attached to the slider.The buckle control button is mounted on the front of the seat armrest and the buckle is moved by the passenger pressing the button. The button can be pressed down to stay in this position, which meets the needs of humanization. The tops of the backrest pad are equipped with skids that move in the sliding slots of the fixed backrest frame. The undersides of the backrest cushion are hinged to the rear end of the seat cushion and move as the seat cushion moves. The power of the seat cushion comes from the forward force of the human body.

There are fixed armrests on both sides of the seat, which mainly consist of armrests, hand switches, armrest holders, and inner and outer panels. The armrests are made of bent sheet steel and are coated with a self-heating polyurethane compound. They are attached to the armrest support with bolts welded to the underside and have manual switches. Then the inner and outer panels made of ABS material are connected to the armrest by brackets. The design of the center armrest, taking into account the convenience of getting on and off the
passengers, should allow it to be raised and placed between two pillows. The center armrest essentially consists of a bracket, an armrest and an outer shell. The armrest bracket is fixed between the leg bracket and the two backrest brackets, and the armrest is connected to the bracket by connecting pins and screws and rotated.The armrest is covered with self-heating polyurethane on the outside and the outer cushion is made of ABS plastic.

Tongling Tieke Railway Equipment Co., Ltd (Tieke Railway) is a high tech private company transformed from a factory under Chinese Ministry of Railways in 2016. It is specialized in manufacturing, repairing, renting various railway wagons and providing various wagon spare parts for customers in industrial, mining, metallurgy, chemical, oil, energy, logistic, and local railway transportation who own railway lines for self use.

Tieke Railway is located in Lion Mountain High Tech Industrial Development Zone, Tongling City, Anhui Province, with convenient distance to express way, high speed train, and Nanjing Lukou International Airport. It has 8.5 million USD register capital, 60000㎡covered area and 30000㎡plant area. There are 250 employees, 30 of which are senior and intermediate engineers and have rich working experiences in Chinese railway.

Tongling Tieke Railway Equipment Co.,Ltd has a complete produce line for railway wagons manufacture and repair. It is capable of providing comprehensive services like railway wagons R&D and manufacturing, railway wagons reconfiguration, railway wagons repairing, railway wagons renting, railway wagon spare parts and etc. It manufactures, maintains and repairs various railway wagons like open wagons, flat wagons, self-unloading wagons, hot metal wagons, hopper wagons and other special function wagons. Besides, Tieke Railway could manufacture and supply various kinds of wagon spare parts like wagon bogies, wheel and axles, braking system parts, coupling system parts and other wagon parts. Each year, Tieke Railway could manufacture over 1000 sets wagons, repair 3000 sets wagons, rent 650-1000 sets wagons and sell over 50,000 sets wagon spare parts.

Tieke railway rents over 600 sets flat wagons, ballast hopper wagons to national companies like China Railway Group(CRG), China Railway Construction Corporation(CRCC), CRRC and etc, which create a precedent for private enterprises to rent railway vehicles to state-owned enterprises and central enterprises. Since 2018, Tieke Railway has provided various railway wagons to customers in Laos, Vietnam, Myanmar, South Korea, Russia, Australia, Sierra Leone, Zambia, Germany, Italy and etc.

On the basis of consolidating the original business, Tieke Railway has increased scientific and technological investment and accelerated scientific and technological innovation and new product development. Since 2018, the company has applied for over 30 product patents and developed a variety of domestic advanced and practical technical products related to railway equipment. In 2019, the company obtained the high-tech enterprise certificate issued by the national science and technology department and the qualification to produce military product.

Consolidate the existing steel, coal, chemical industry, local railways, electric power and other railway self use wagons customers; Combined with the development trend of national urban rail transit, expand the new construction of metro vehicles; Provide on-site maintenance and transformation services for self owned vehicles for industrial and mining enterprises; Respond to the national policy of military civilian integration and gradually apply for military production qualification; Jointly develop new products with domestic scientific research institutions and colleges and universities; Cross shareholding with related enterprises to improve product market share; With ‘one belt and one road’ policy, explore and develop international railway wagons market and railway wagon spare parts market.

Tieke Railway has acquired ISO9001 quality management certification, ISO14001 Environmental management certification and ISO 18001 health and safety management system certificate. Adhering to the tenet of ‘ human oriented, pragmatic and efficient, sincere cooperation, mutual beneficial and win-win’ , Tieke Railway provides high quality railway products and satisfactory services to customers all over the world. Warmly welcome to visit our factory!
