Railway Wagon 1000 mm /1067 mm / 1435mm /1520mm Gauge Railway Bogie

Breif introduction:

K6 casting railway bogie is the main wagon bogies for 70 tons to 80 tons Chinese railway freight wagons. The max. running speed is 120km/h.

The application test and many dynamic tests show that K6 bogie can effectively reduce the wear between wheel and rail of heavy haul train, reduce the operation cost of heavy haul transportation, isolate the high-frequency vibration between wheel and rail, improve the vertical dynamic performance of vehicle and improve the running stability of vehicle.

Main technical features:

1. Cast steel three-piece truck bogie

2. Two suspension damping system: primary suspension adopts axle box elastic shear pad; secondary suspension adopts central pillow spring suspension system with variable friction damping device;

3. Bolster spring adopt two grades’ stiffness springs;

4. Adopt elastic lower cross support device to fasten the two side frames;

5. Center plates connecting under frame and bogies;

6. Lower center plate equipped with oil-bearing nylon wear disc;

7. Double acting double row tapered roller bearings;

8. Light new structure HEZB cast steel wheels or HESA rolling steel wheels;

9. Adopt pull rod type single side brake shoes braking, L-A or L-B combined brake beams assembly and high friction composition brake shoes;

Main technical parameters:

K6 bogie structure:

K6 casting bogie is mainly composed of side frames, bolster, wheelset, adapter and bearing, brake rigging, suspension springs, side bearings, bogie center plate and some wear plates.

Bogie Assemly:

Bogie axle bearing:

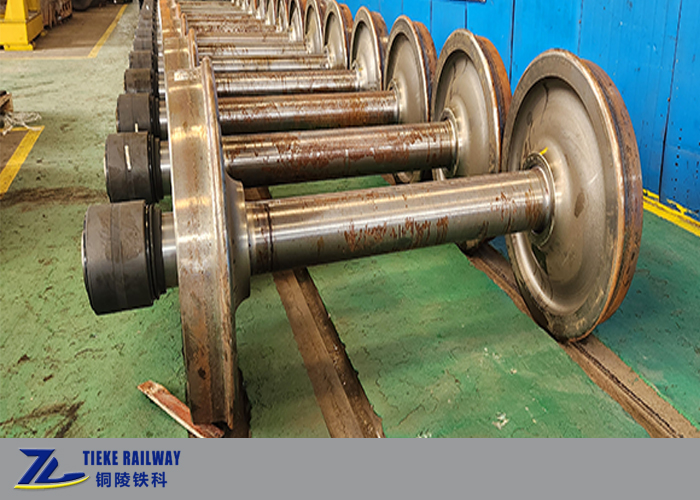

Bogie wheelset:

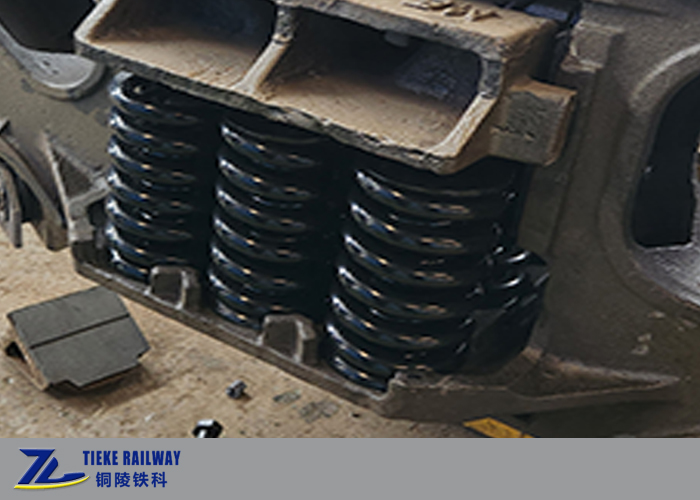

Bogie primary suspension springs:

Bogies package and transportation:
2 sets/steel pallet, 4 sets/20GP

FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagon bogies directly.

Q2: Do you have design ability to provide customized railway bogies?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
