Product Description:
Railway Hopper Wagons - The Perfect Solution for Efficient Freight
Transportation
Railway hopper wagons, also known as hopper cars, are specialized
freight cars used for transporting bulk materials such as coal,
grain, and ore. As a leading railway hopper car manufacturer, we
are proud to offer high-quality hopper wagons that are designed to
meet the specific needs of our customers.
Product Overview

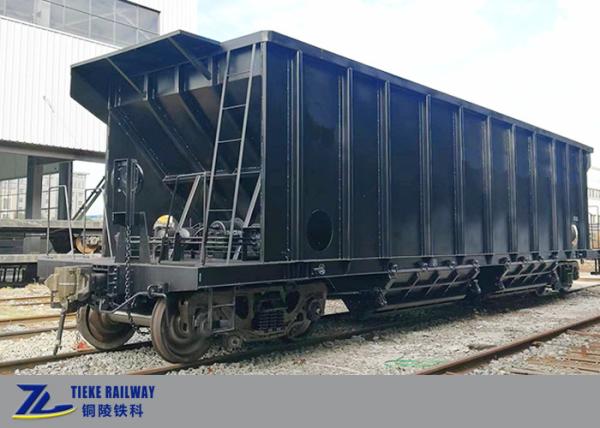

TK90 Series railway hopper wagons are designed to transport mineral
ores for standard gauge railway in South American or African
countries. The nominal capacity is up to 90 tons and the volume is
about 40 m³.
The auto quick discharge device is fitted on the bottom of the
wagon. And the hopper wagons could be grouped in trains of 150 sets
pulled by locomotives total horse power over 6000HP.
Key Features
- Big load, heavier tare weight heavy load freight wagons
- Adopt center beam structure, assisted by under frame and side wall,
transmit the Longitudinal load effectively, improving the strength
and rigidity of the whole wagon
- Adopt auto discharge device, unloading the ores faster and
efficiently
- Adopt Wabtec’s dual pipes air brake with ELX valve, improving the
brake performance in heavy load at long ramp.
- Adopt heavy load ride control casting bogie, max. axle load up to
30 tons.
Why Choose Tieke Railway Hopper Wagons?
At our company, we understand the importance of reliable and
efficient transportation in the railway industry. With our hopper
wagons, you can expect superior performance and durability, thanks
to our stringent quality control processes. Our hopper wagons are
designed to meet the highest industry standards, ensuring safe and
efficient transportation of bulk materials.
Whether you need to transport coal, grain, or ore, our Railway
Hopper Wagons are the perfect solution for your freight
transportation needs. Contact us today to learn more about our
hopper wagon design and how it can benefit your business.
Features:
- Product Name: Railway Ore Hopper Wagons
- Brake System: Air Brake Comply With AAR Standard
- Max. Width: 3217mm
- Loading Type: Bottom Discharge
- Bottom doors qty: 4
- Tare Weight: 30 Tons
Technical Parameters:
| Product Name | Railway Mineral Ore Hopper Wagons |
|---|
| ModelTK | TK90 |
|---|
| Brake System | Air Brake Comply With AAR Standard |
|---|
| Bottom Doors Quantity | 4 |
|---|
| Pay Load | 90 Tons |
|---|
| Loading Type | Bottom Discharge |
|---|
| Funnel Plate Inclination (Longitudinal Direction) | 70° |
|---|
| Funnel Plate Inclination (Transverse Direction) | 90° |
|---|
| Max. Width | 3217mm |
|---|
| Coupler and Draft Gear | AAR E Coupler & MT-2 Buffer |
|---|
| Max. Height | 3810mm |
|---|
| Design Speed | 80 Km/h |
|---|
| Axle Load | 30 Tons |
|---|
Customization:
We could tailer design the railway wagons to your specific
requirements:
Rail gauge: 1000mm, 1067mm, 1435mm, 1520mm, 1676mm, etc;
Brake system: AAR air brake, UIC air brake, Chinese air brake, Gost
air brake, Vacuum brake, etc
Coupler system: AAR couplers, UIC couplers, Gost Couplers, Mixed
type couplers, etc
Pay load: 40 tons, 50 tons, 60 tons, 70 tons, 80 tons, 90 tons, etc
Whether you need a large fleet of standard TK90 hopper wagons or a
highly customized solution, we have the capabilities and resources
to meet your needs. Contact us today to discuss your customization
options and get a quote for your project.
Packing and Shipping:
Packaging:
Nude packing with support frame and fastening steel wires to make
full use of the cargo ship and easy to lift and transfer during the
transportation.
We will double confirm the packing solution with customers before
shipping.
Shipping:
Due to the big size of the railway wagons, they are not shipped by
container ship, but by bulk cargo ship.
